Microsoft Azure Certified IoT DevKit (IOT-AZ3166)

SKU: IOT-AZ3166
List Price : $59.95
Amazon Rating : (90 Reviews)

Features

CLOUD CONNECTED—Build a cloud powered IoT app in minutes using Microsoft Azure services
FAST PROTOTYPING—Develop quickly and seamlessly utilizing Visual Studio with the Arduino Extension. Developer support provided by Microsoft

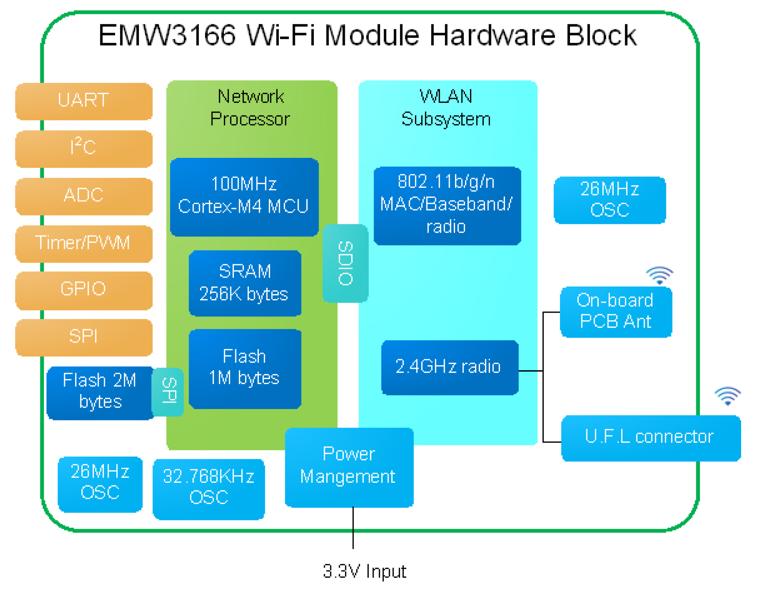

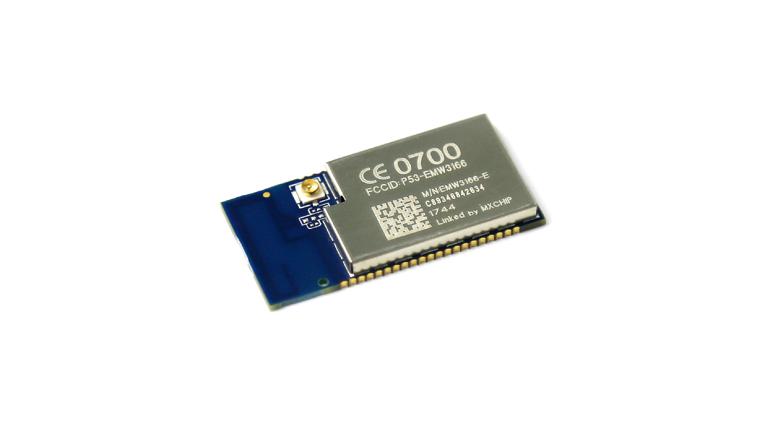

POWERFUL PROCESSING—SoC module combines the power of the ST Microelectronics STM32F412 at its core and MXChip EMW3166 for WiFi

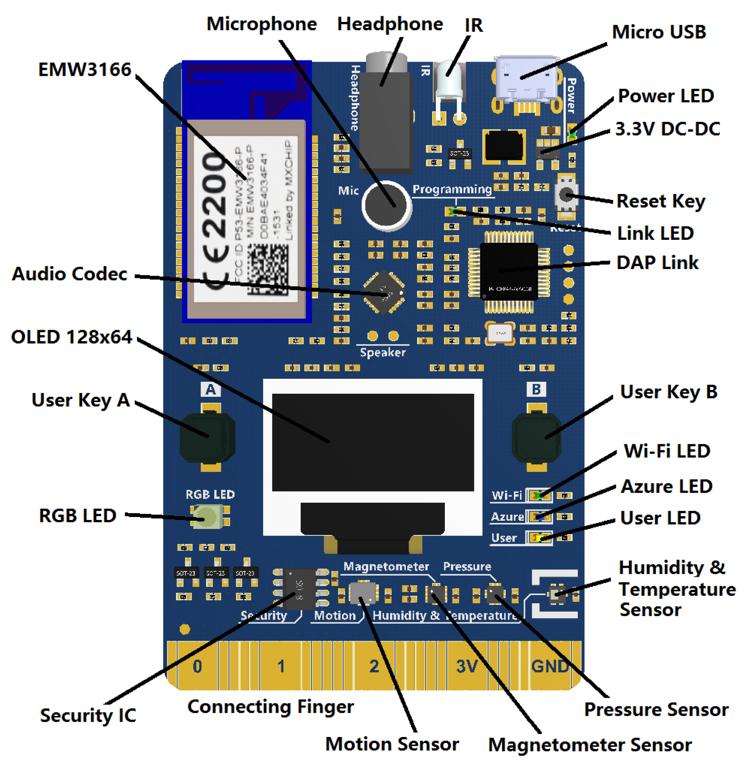

BUILT-IN EVERYTHING—On-board peripherals include an OLED screen, headphone output, stereo microphone, and abundant sensors like humidity and temperature, pressure, motion (accelerometer and gyroscope), and magnetometer
CONNECT EASILY—25 external GPIO pins on the edge connector allow you to connect many external sensors and actuators

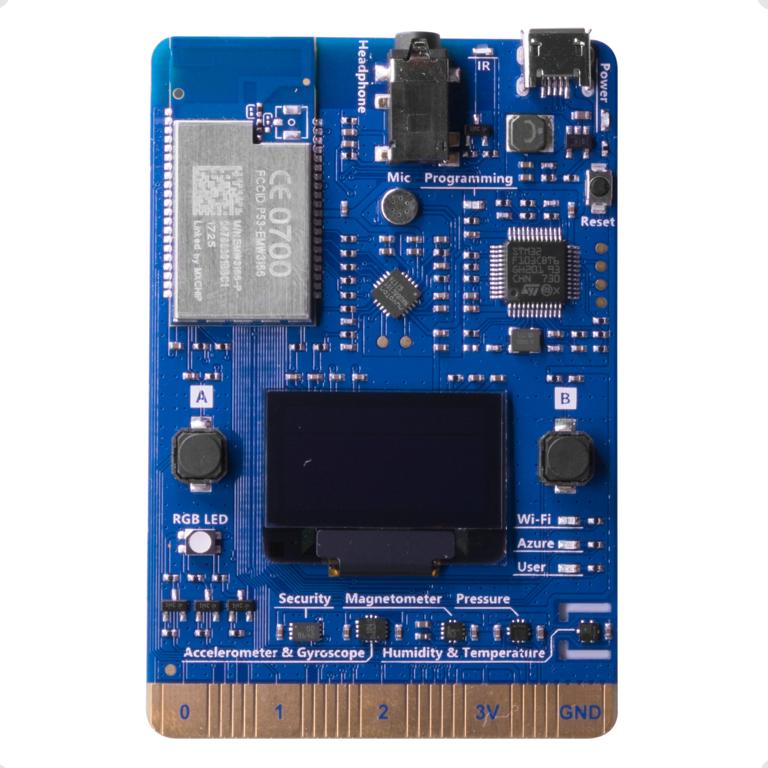

Main product photo of the IOT-AZ3166 single-board computer

The Microsoft Azure Certified IoT DevKit (IOT-AZ3166) is an all-in-one kit optimized for prototyping and developing Internet of Things (IoT) solutions leveraging Microsoft Azure services.

It provides an Arduino compatible board with rich peripherals such as an OLED display, sensors, hardware debugging chip (ST-Link) and security chip, a growing projects catalog has innovative samples for learning and reference and comprehensive documentation. It can use Visual Studio Code with Arduino Extension to quickly build a full-fledged IoT application that integrates multiple services like Azure IoT Hub, Logic App, and Cognitive Services. This hardware/software integration makes developing new applications easier than ever before.

Seamless Development Experience

Use Visual Studio Code with Arduino Extension to quickly build a full-fledged IoT application that integrates multiple services like Azure IoT Hub, Logic App, and Cognitive Services. Our projects catalog has innovative samples to help you get started and build your own project.

Powerful ARM Cortex-M Board with Rich Peripherals

SoC module combines the power of the ST Microelectronics STM32F412 at its core and Cypress BCM43362 for WiFi. The on-board peripherals include an OLED screen, headphone output, stereo microphone and abundant sensors like local atmosphere (humidity and temperature), pressure, motion (accelerometer and gyroscope), and magnetometer.

Fully Compatible Arduino Board

All the cool things you can do with an Arduino can be done with the DevKit. It is targeted for developers to create and prototype IoT projects, using a low-power device, quickly and easily. There are 25 external GPIO pins on the edge connector of the board, allowing you to connect to external sensors and actuators.

Device Technical Specifications

IoT Connectivity	MQTT, HTTPS, and WiFi
Sensors	Humidity and Temperature, Gyroscope and Accelerometer, Air Pressure, Magnetometer, Microphone, and IrDA
I/O Connectivity	GPIO, I2C, Serial, and USB
Secure Hardware	ST-Safe A100
Processor	100 MHz STMicroelectronics STM32F412
RAM	256KB Memory
Storage	2MB Flash Memory

In The Box

Item and Quantity	Item Notes
1x MXCHIP IoT DevKit board
1x USB 2.0 Micro-B Cable
1x Quick Start Guide

Audio Elements

Element Type	Connection	Frequency Response and Sensitivity	Additional Features	Min/Max Power (Speaker)	Current (Microphone)
Internal

Power

Port	Placement	Power Host / Device	Connection Type	Notes	Voltage	Amperage	Wattage
USB Micro-B	Side	Device		Bus Powered (No Power Adapter)	5.0V	2mA	0.01W

Included Cables

Port Type (Side 1)	Cable Specification	Port Type (Side 2)	Cable Length	External Power for Cable
1x Male USB Micro-B	USB 2.0 (480Mbps)	1x Male USB-A	0.33m/1.0ft	No
